measurement at the minimum and maximum extension of the gas lift
for products with additional backrest and headrest height adjustment — measurements taken at the minimum position of the backrest, headrest, and gas lift, and at the maximum position of the backrest, headrest, and gas lift
B - Overall width
measurement at the outermost points of the product
for products with armrests adjustable sideways — measurement with the armrests fully extended outward
for products with armrests featuring adjustable pads — measurement with the pads moved to their outermost position
C - Overall depth
measurement at the outermost points of the product (for chairs with a central column — excluding the base)
for products with seat depth adjustment — measurement at maximum seat extension
D - Back width
measurement at the widest points of the backrest
E - Seat width
measurement at the outermost points of the seat width
F - Seat height (to the top of the seat)
measurement at the point where the gas lift is mounted
measurement at the minimum and maximum extension of the gas lift
G - Backrest height measured from the top of the seat
measurement from the seat (measured as in point F) to the top edge of the backrest, taken vertically to the floor
for products with backrest height adjustment — measurement at the minimum and maximum backrest positions
H - Seat depth from the lumbar support
measurement from the front edge of the seat to the point where it meets the backrest (the contact point is determined using a spirit level placed vertically against the backrest, projecting the contact point onto the seat surface)
for some bucket-style chairs, where there is no clear boundary between the seat and the backrest, the depth is measured at approximately 20 cm above the seat
for products with additional seat depth adjustment — measurement at the minimum and maximum extension
H3 - Depth of seat only
measurement at the outermost points of the seat depth
J - Headrest height
measurement from the top edge of the backrest to the top edge of the headrest
headrest positioned vertically (aligned between its upper and lower edges)
measurement taken at the minimum and maximum headrest positions
L - Armrest height from the top of the seat
measurement from the top of the seat (measured as in point F) to the top edge of the armrest
for armrests with height adjustment — measurement at the minimum and maximum armrest positions
M - Armrest pad width
measurement at the outermost points of the pad
M2 - Sideways adjustment of armrest pads
measurement of the sideways adjustment range of a single armrest pad (in one direction)
N - Armrest pad length
measurement at the outermost points of the pad
N2 - Fore-aft adjustment of armrest pads
measurement of the fore-aft adjustment range of the armrest pad
Q - Armrest pad rotation angle
measurement of the angle relative to the pad in the neutral (straight) position
measurement of the rotation angle in one direction for a single pad
Q2 - Additional width of the rotated armrest pad
measured on one side only
measured from the outermost edge of the rotated pad to the edge in the neutral (straight) position
R2 - Sideways adjustment of armrests
sideways adjustment of the entire armrest
measured on one side (for a single armrest)
with the armrest pads in their neutral (unchanged) position

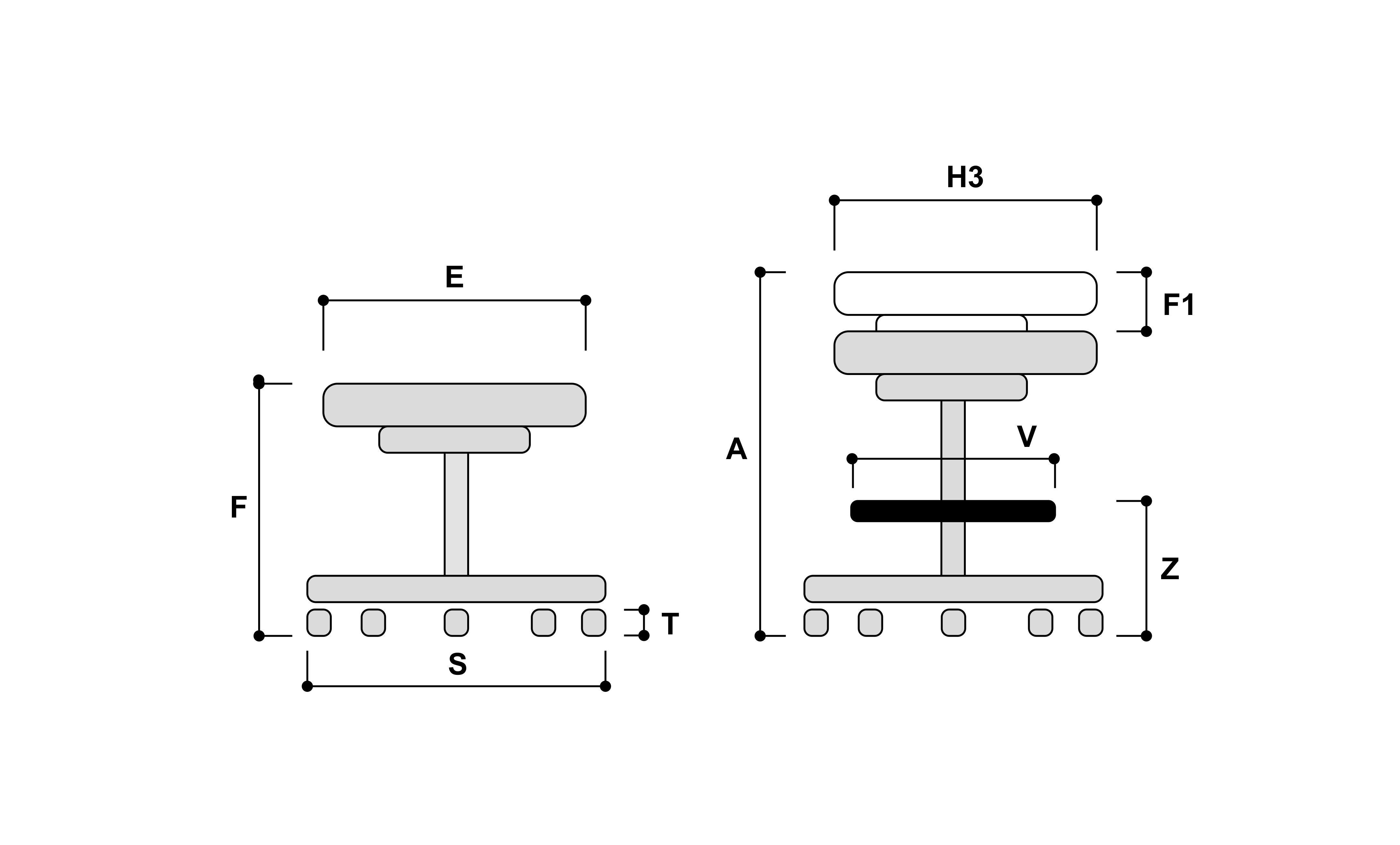

S - Base size
for 4- and 5-star bases — double the distance from the center of the base to the outermost point of a base leg
T - Caster diameter
diameter of the wheel (rolling part)
V - Footrest diameter
measured along the outer circumference
Z - Footrest height from the floor
for adjustable footrests — measured at the minimum and maximum positions
measured to the top edge of the footrest
Dimensions - chairs on 4-leg frame
A - Overall height
overall chair height measurement
B - Overall width
measurement at the outermost points of the product
for products with armrests featuring movable pads — measurement with the pads fully extended outward
C - Overall depth
pomiar w skrajnych punktach produktu
D - Back width
measurement at the outermost points of the backrest width
E - Seat width
measurement at the outermost points of the seat width
F - Seat height (to the top of the seat)
measurement of the seat at 2/3 of its depth from the front edge
G - Backrest height measured from the top of the seat
measurement from the seat (measured as in point F) to the top edge of the backrest, taken vertically to the floor
H - Seat depth from the lumbar support
measurement from the front edge of the seat to the point where it meets the backrest (the contact point is determined using a spirit level placed vertically against the backrest, projecting this point onto the seat surface)
for some bucket-style chairs, where there is no clear boundary between the seat and the backrest, the depth is measured at approximately 20 cm above the seat
L - Armrest height from the top of the seat
measurement from the top of the seat (measured as in point F) to the top edge of the armrest
S1 - Frame width (at the base)
measurement at the outermost points of the frame (to the outer edge of the profile)
S2 - Frame depth (at the base)
measurement at the outermost points of the frame (to the outer edge of the profile)
T - Caster diameter
diameter of the wheel (rolling part)
X1 - Table width
width of the table when unfolded
X2 - Table depth
depth of the table when unfolded
Y - Table height from the floor
height from the floor to the top surface of the table
Z - Overall depth with the table
overall depth of the chair with the table unfolded
